Urtopia

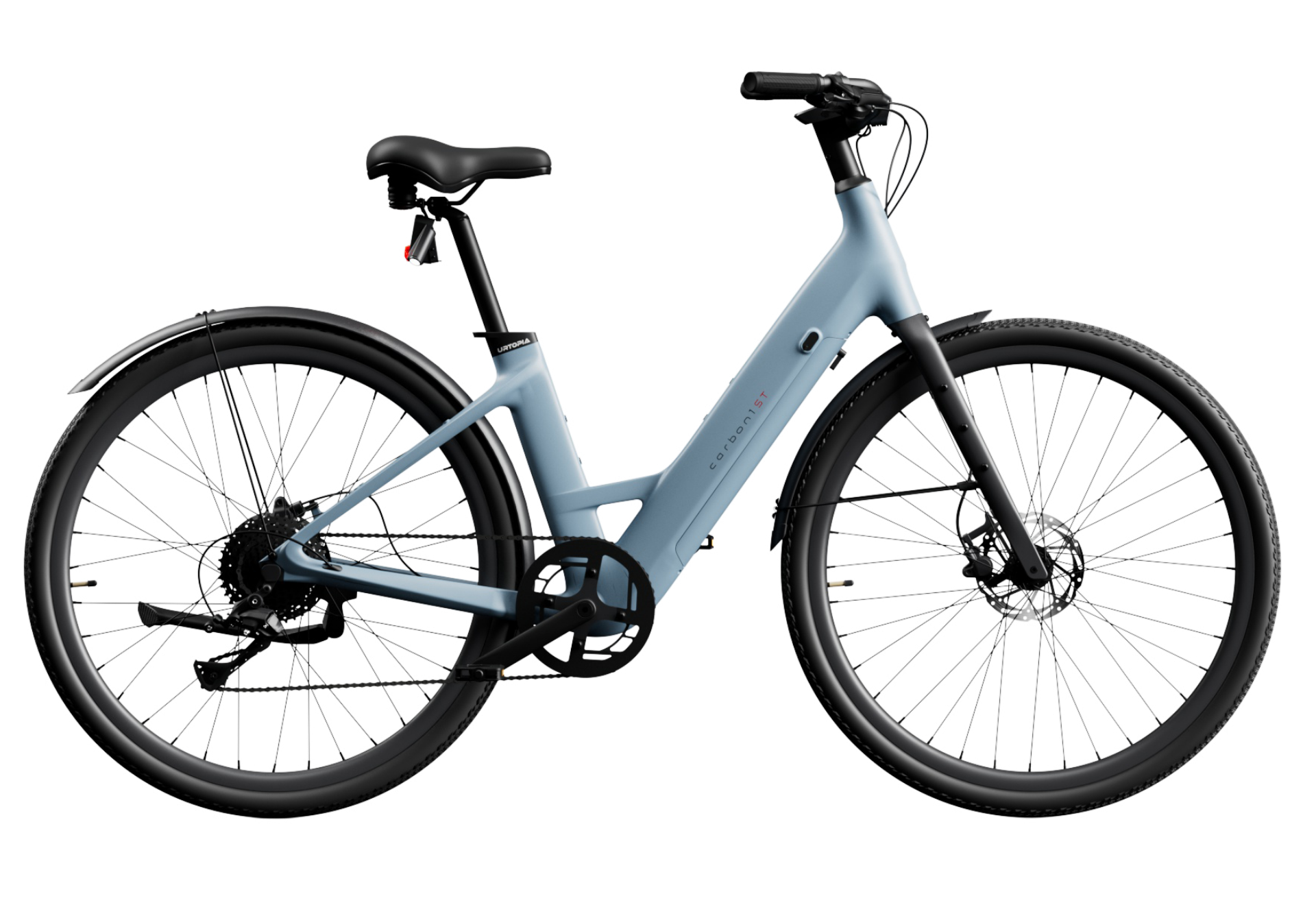

Carbon 1 Step-Thru E-Bike

Thumbnail
Thumbnail
Thumbnail
Top Speed
20 mph
Range
81 mi
Motor
350W
Battery
36V 9.8Ah
$1899.00

The Carbon 1 ST brings the same ultra-light carbon fiber performance to a more accessible step-through design. Weighing around 41 lbs, it combines premium materials with a low-step frame that makes mounting and dismounting easy …


Color — Select color

Please select a color

Size — Select size

Please select a size
Buy Now
Please make your selections above
Authorized Dealer Free Delivery (10mi) Free Rental w/ Purchase

Specifications

Technical details.

General
Certification IP65
Model Carbon 1 Step-through E-bike
Warranty 2-year warranty
Water Resistance IP65
Performance
Pedal Assist 4 levels
Range Up to 81 miles *The range was tested with a 180 lb rider, riding in ECO mode on flat roads with pedal assist only and no throttle.
Rider Height Regular: 5'1" - 5'9"
Top Speed 20mph by default 25mph upon unlock
Power & Electronics
App / Connectivity Urtopia app, Bluetooth
Battery 36V 9.8Ah (352.8Wh) Samsung Li-ion, Removable, UL 2271 Certified
Battery Type Li-ion
Charger 36V 4A Fast Charger, 2.5-Hour Charging Time
Display LED dot-matrix (Anti-glare)
Motor Rated Power 350W (Peak Power 500W) rear hub
Sensors Torque sensor
Build & Components
Bike Weight 38 lbs (17.4kg) w/ battery 33 lbs (15.2kg) w/o battery *All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
Brakes TEKTRO 2-Piston Hydraulic Disc Brakes
Cassette 11T-40T, 8 speed
Chain 44T
Crankset 44T
Drivetrain Shimano ACERA 8-Speed
Frame Material Carbon fiber frame & fork
Frame Style step-through
Wheels Kenda 700C x 40mm (45mm max.) tires
