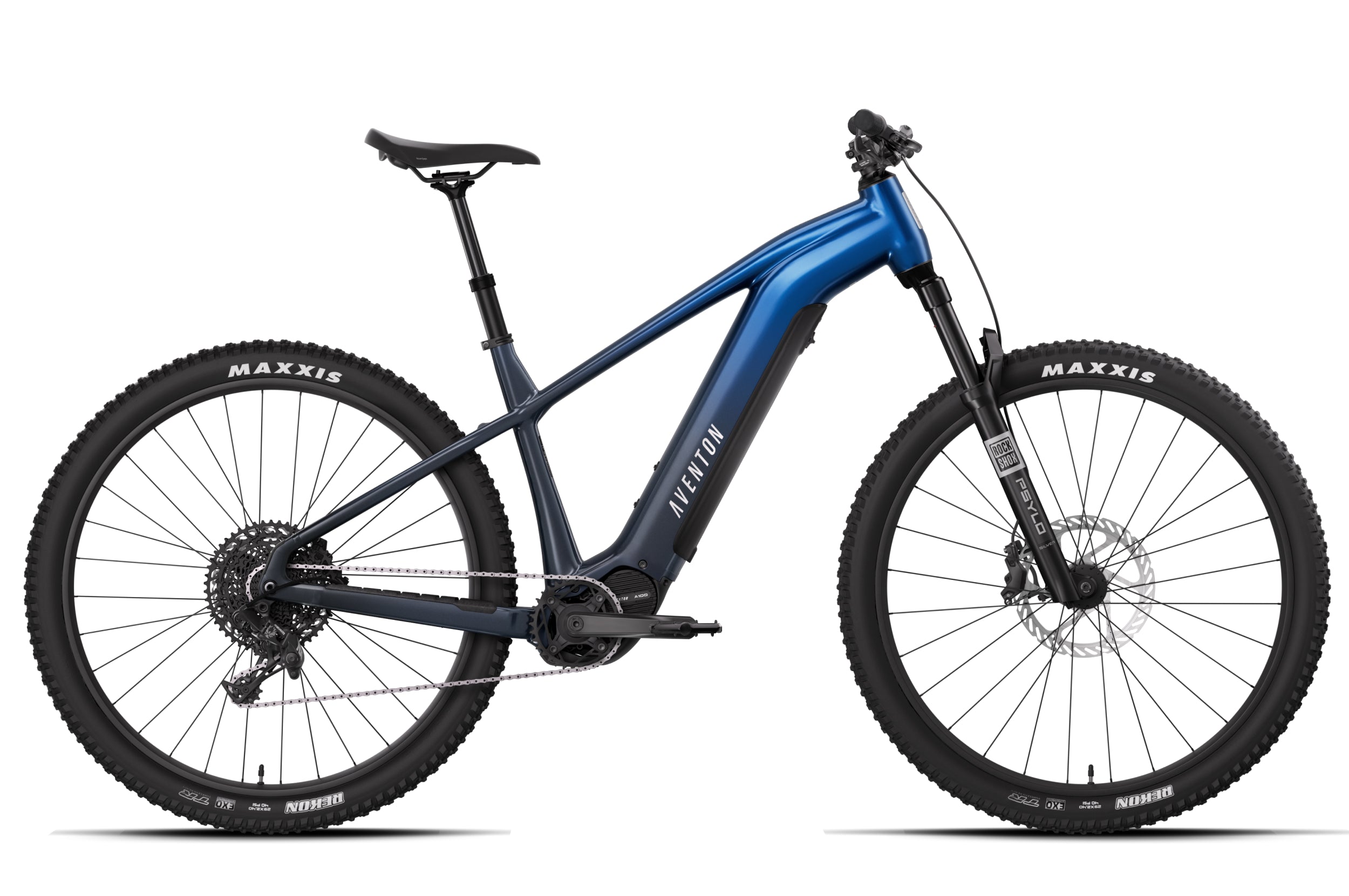

Ramblas ADV

Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Top Speed
20 mph
Range
90 mi
Payload
300 lbs
Motor
750W
Battery
TUV Certified in accordance with UL 2849 / UL 2271
$2699.00

Carve out the uncommon route with Ramblas ADV, Aventon’s electric hardtail mountain bike. Rugged and reliable, this all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Pursue any adventure with a range …


Color — Select color

Please select a color

Size — Select size

Please select a size
Buy Now
Please make your selections above
Authorized Dealer Free Delivery (10mi) Free Rental w/ Purchase

Specifications

Technical details.

General
Certification TUV Certified in accordance with UL 2849 / UL 2271

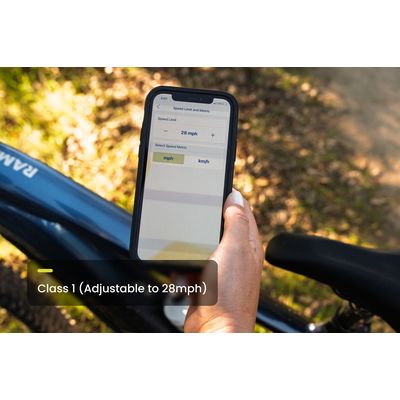

E-Bike Class Class 1, unlockable to Class 3
Ideal Use Mountain Biking, Urban Riding
Warranty 2-year warranty
Water Resistance Bike - IPX6 // Motor - IP67
Performance
Max Payload 300 lbs
Pedal Assist 4 levels
Range Up to 90 miles
Rider Height 5'5" - 6'5"
Throttle N/A
Top Speed 20 mph
Torque 100Nm
Power & Electronics

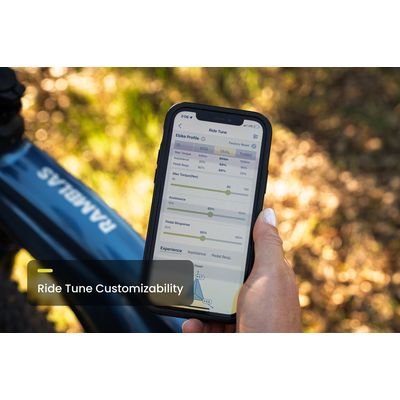

App / Connectivity Aventon app, Bluetooth, 4G GPS
Battery TUV Certified in accordance with UL 2849 / UL 2271
Battery Type Li-ion integrated
Battery Weight 8.44 lbs
Charger 42V 4A charger
Charge Time 5 hours
Display Aventon BC201
Lights Integrated

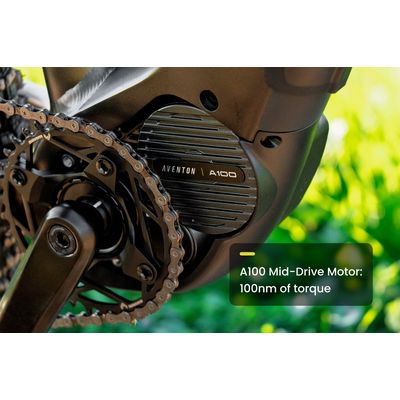

Motor 750W
Peak Power 750W
Removable Battery Yes
Sensors Double Sided Torque Sensor Integrated in Motor
Build & Components
Bike Weight 54 lbs
Brakes SRAM DB6 4-Piston Hydraulic Disc Brakes
Cassette SRAM SX 12-Speed 10-50T
Chain SRAM 12-Speed
Crankset 165mm ISIS Splined

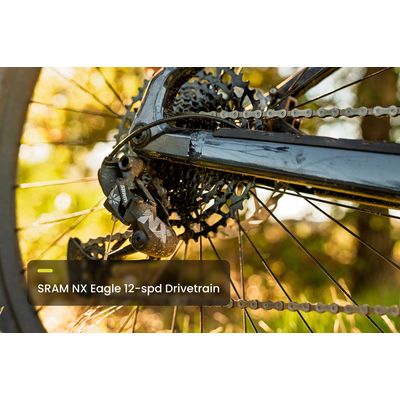

Drivetrain SRAM NX 12-Speed
Fork Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5"tapered steerer tube, Rebound adjust
Fork Spacing 15x110mm
Frame Material 6061 Single-Butted Aluminum Alloy
Frame Style step-over hardtail
Front Rotor SRAM G2 200mm
Grips Aventon Lock on grips
Handlebar 760mm width, 35mm clamp diameter, 33mm rise, 3* upsweep, 9* backsweep.
Kickstand Included in accessory box
Pedals 9/16" Alloy Platform
Rear Rotor SRAM G2 180mm
Saddle Aventon Saddle
Seatpost Manic LC 150mm travel for size M-XL. 31.6mm ø. 395mm length
Seatpost Clamp 34.9mm
Suspension RockShox Psylo coil fork 130mm travel, dropper seatpost

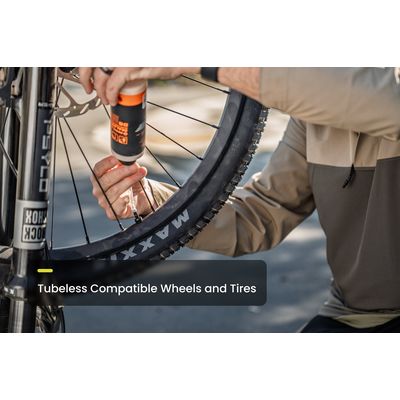

Wheels 29in, 32hole, BOOST Thru Axle, Presta Valve, Tubeless Ready
Other
Headset T51Ks 28.6*56-56*39.8/ H:23.4mm
Rear Spacing 12x148mm
