Rad Power

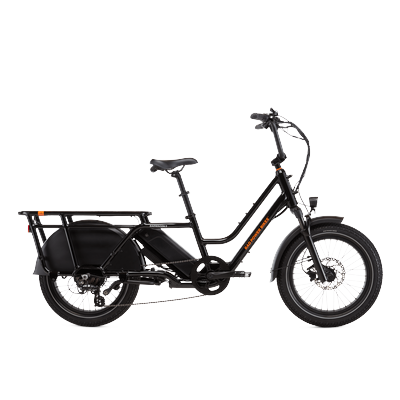

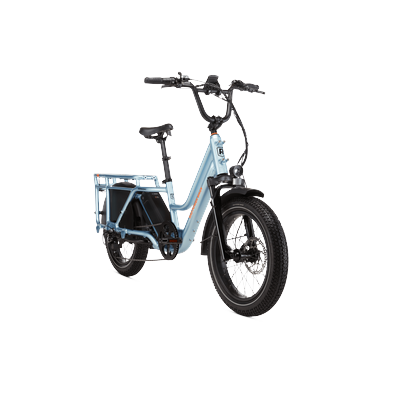

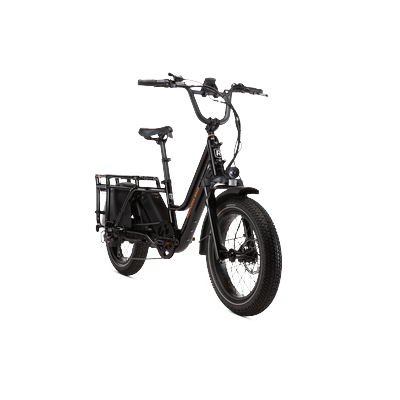

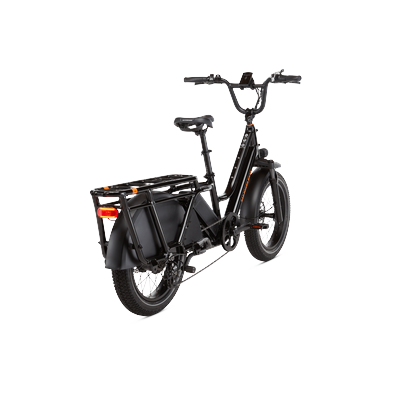

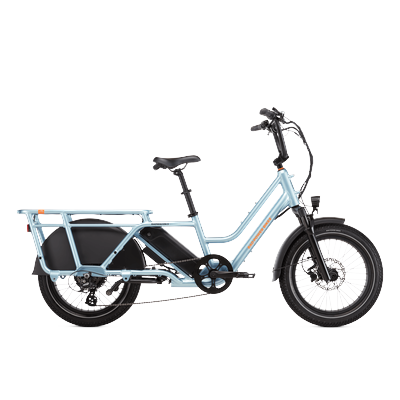

RadWagon™ 5 Electric Cargo Bike

In Stock

Top Speed

28 mph

Range

60+ mi

Payload

375 lbs

Motor

750W

Battery

15Ah 720Wh

$2399.00

Leave the minivan behind. Our fan-favorite electric cargo bike just had a glow-up. The RadWagon 5 provides a condensed frame for better handling, a plethora of advanced safety features, and more carrying capacity than ever …

Color — Select color

Please select a color

Buy Now

Please make your selections above

Authorized Dealer Free Delivery (10mi) Free Rental w/ Purchase

Specifications

Technical details.

General

Certification UL Certified to UL 2849 and UL 2271

E-Bike Class Class switchable 1 to 3. Ships in Class 2 status.

Ideal Use cargo / family hauling

Warranty 2-year warranty

Performance

Max Payload 375 lb

Pedal Assist Torque sensor, 5 PAS Levels, plus a zero assist option

Range 60+ miles

Rear Rack Payload 120 lb (54.4 kg)

Rider Height 4'11"-6'3" (150-190 cm)

Throttle Half twist grip throttle

Top Speed 28 mph

Torque 90 Nm

Power & Electronics

App / Connectivity Rad Power app, Bluetooth

Battery 15Ah 720 Wh Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271

Battery Type Li-ion SafeShield (Samsung/LG cells, UL 2271)

Charger 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets

Charge Time 7.5 hours

Display Rad custom color display. See Display section below for details.

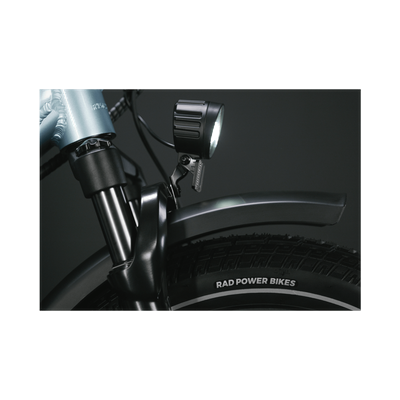

Lights Auto-on feature Front: 450 lumens LED headlight with built-in reflector Rear: Integrated taillight with brake light and turn signals

Motor 750W

Removable Battery Yes

USB Port One USB-C port, located on display

Build & Components

Bike Weight 86 lb (39 kg), 75.6 lb (34.3 kg) with battery removed

Brake Pads Tektro Semi-Metallic E11.11

Brake Rotors 180 mm x 2.3mm

Brakes Tektro Hydraulic Disc HD-E395

Cassette 7-speed freewheel, 11-34T

Crankset 50T with dual sided chain ring cover, 170mm crank arms

Drivetrain 7-Speed Shimano

Fenders Full coverage front and rear, plus integrated wheel cover

Fork RST Guide suspension fork, 45mm travel, tapered steerer tube, thru axle

Frame Material Aluminum

Frame Size Regular

Frame Style step-through / longtail

Grips Ergonomic rubber comfort grips

Handlebar Aluminum, 680 mm wide

Handlebar Height 44" (111.8 cm)

Kickstand Dual leg center stand, spring loaded, steel

Pedals Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading

Reach 14.2" (36 cm)

Rear Rack Integrated, 120 lb (54.4 kg) carrying capacity

Saddle Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides

Seat Height From ground: 30.5" - 41.8" (77.5 - 106.1 cm) From pedal bottom stroke: 25" - 37" (64 - 94 cm)

Seatpost Telescoping, 552 mm x 34.9 mm

Seatpost Clamp 40 mm

Seat Tube Length 13.5" (34.2 cm)

Standover Height 21" (53.3 cm)

Stem 35mm A-head

Suspension 45mm suspension fork

Tires Kenda 20" x 3.3"

Total Length 76" (193 cm)

Wheelbase 50.7" (128.8 cm)

Wheels 20 inch

Other

Bell Yes
