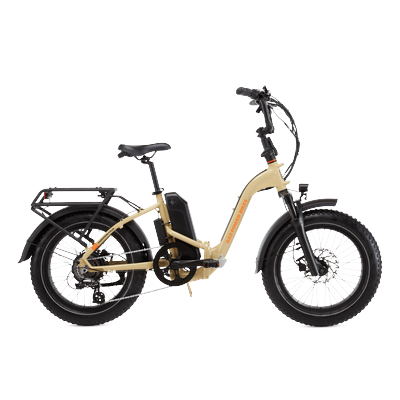

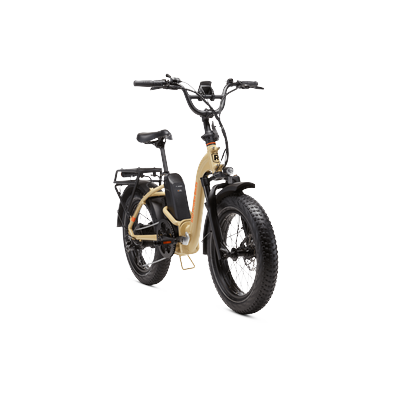

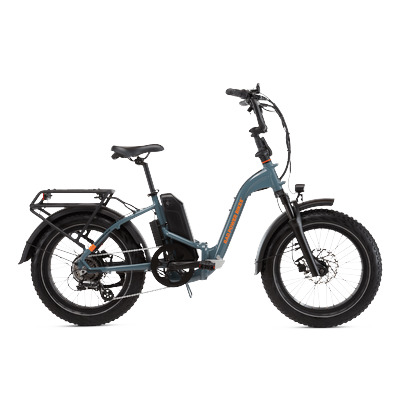

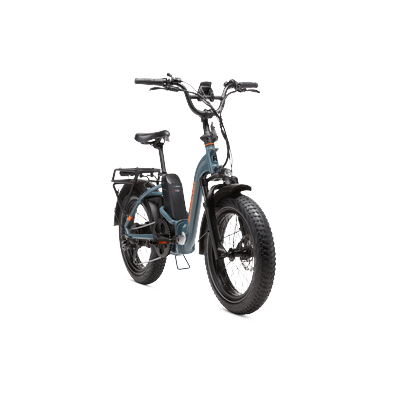

RadExpand™ 5 Plus Electric Folding Bike

In Stock

Top Speed

20 mph

Range

60+ mi

Payload

315 lbs

Motor

750W

Battery

15Ah 720Wh

$1899.00

We’ve taken the classic RadExpand folding bike and enhanced it with all-new tech, impressive range, and a collection of features that make it more comfortable, capable, and unique. Tackle tougher terrain with a hydraulic front …

Color — Select color

Please select a color

Buy Now

Please make your selections above

Authorized Dealer Free Delivery (10mi) Free Rental w/ Purchase

Specifications

Technical details.

General

Certification UL Certified to UL 2849 and UL 2271

E-Bike Class Class switchable between 1 and 2. Ships in Class 2 status.

Ideal Use commuting / travel / storage

Warranty 2-year warranty

Performance

Max Payload 315 lb

Pedal Assist Torque sensor, 5 PAS Levels, plus a zero assist option

Range 60+ miles

Rear Rack Payload 59 lb (27 kg)

Rider Height 4'10"-5'10" (147-178 cm)

Throttle Half twist throttle

Top Speed 20 mph

Torque 64 Nm

Power & Electronics

App / Connectivity Rad Power app, Bluetooth

Battery 15Ah 720 Wh 15Ah Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL certified to UL-2271

Battery Type Li-ion SafeShield (UL 2271)

Charger 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets

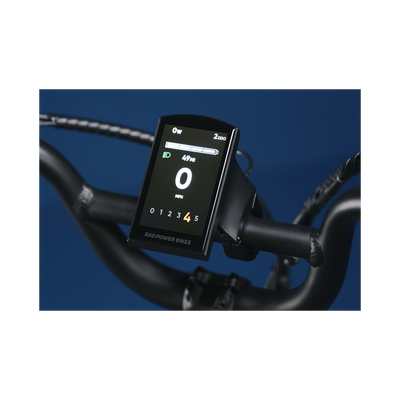

Display Rad custom color display. See Display section below for details.

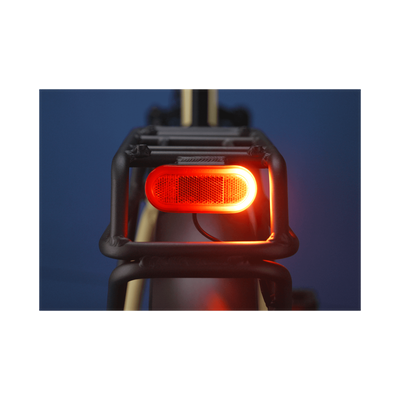

Lights Auto-on feature Front: ~50 lumens LED headlight with built-in reflector Rear: Integrated taillight with brake light

Motor 750W

Removable Battery Yes

USB Port One USB-C port, located on display

Build & Components

Bike Weight 72.5 lb (32.9 kg), 62.5 lb (28.3 kg) with battery removed

Brake Pads Brake Pads

Brake Rotors 180mm x 2.3mm

Brakes Hydraulic Disc, Gemma GA-1000B

Cassette 7-speed freewheel, 14-32T

Crankset 48T with dual sided chain ring cover, 170mm crank arms

Drivetrain 7-Speed Shimano

Fenders Full coverage front and rear fenders

Fork Exsho STRONG-C hydraulic suspension fork, 50mm travel, bolt-on axle

Frame Material Aluminum

Frame Size Regular

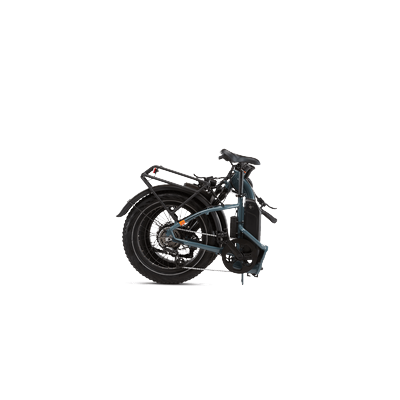

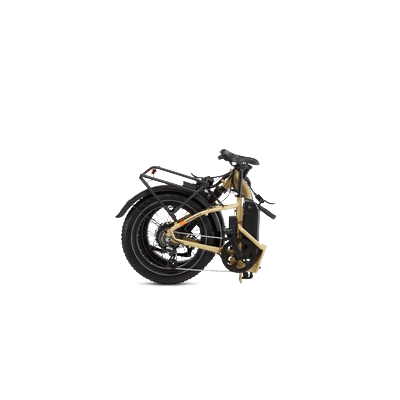

Frame Style folding

Grips Ergonomic rubber comfort grips

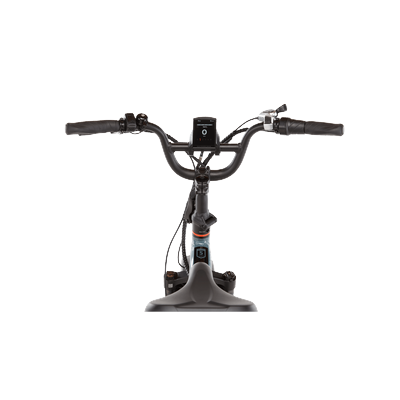

Handlebar Aluminum, 680 mm wide

Handlebar Height 43.5" (110.4 cm)

Kickstand Side mounted, adjustable angle kickstand

Pedals Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading, folding

Reach 17.9" (455 mm)

Rear Rack Integrated, 59 lb (27 kg) carrying capacity

Saddle Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides

Seat Height From ground: 31" - 38" (78.7 - 96.5 cm) From pedal bottom stroke: 26" - 33" (66 - 84 cm)

Seatpost 390 mm x 27.2 mm

Seatpost Clamp 31.8 mm

Seat Tube Length 14.2" (360 mm)

Standover Height 16.5" (41.9 cm)

Stem Folding stem raiser with 45mm A-Head stem

Suspension front suspension fork

Tires CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip

Total Length 68" (172.7 cm)

Wheelbase 44.5" (113 cm)

Wheels 20 inch

Other

Bell Yes
