Aventon

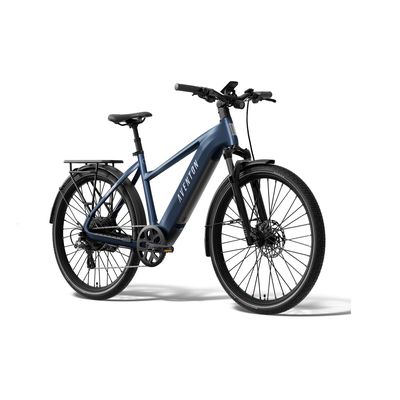

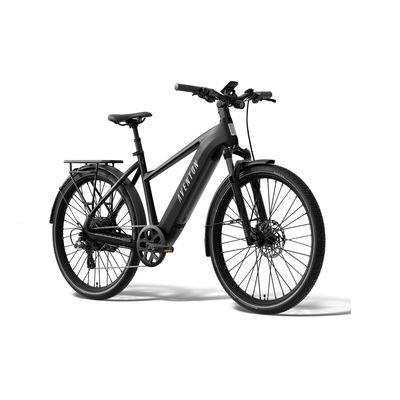

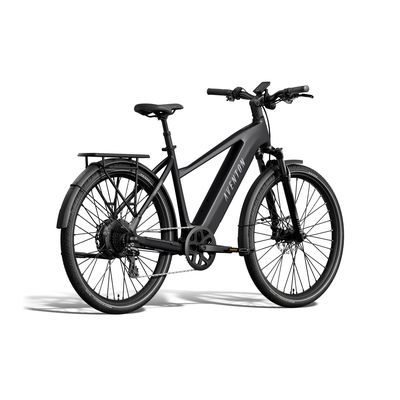

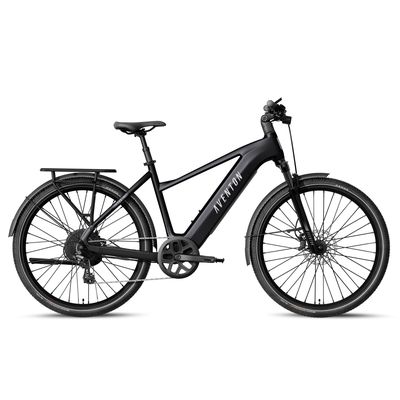

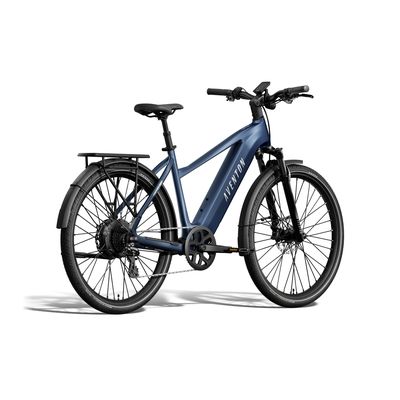

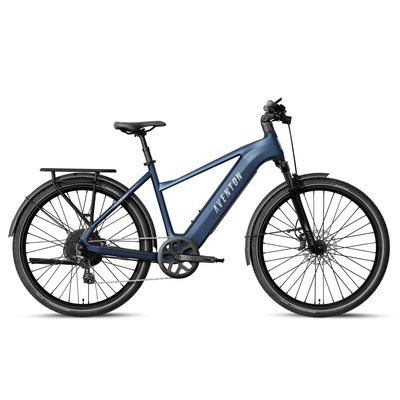

Level 4 REC

Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Top Speed
28 mph
Range
75 mi
Payload
300 lbs
Motor
750W
Battery
36V 20Ah 733Wh
$1799.00

The Level 4 REC builds on Aventon’s legacy as a trusted, accessible commuter option, pairing a 750W hub motor with up to 75 miles of range for dependable, all-weather transportation. It’s built for riders who …


Color — Select color

Please select a color

Size — Select size

Please select a size
Buy Now
Please make your selections above
Authorized Dealer Free Delivery (10mi) Free Rental w/ Purchase

Specifications

Technical details.

General
Certification UL Safety Certified UL 2849
E-Bike Class Class 2 (Convertible to Class 3)
Ideal Use commuter
Warranty 2-year warranty
Water Resistance Bike - IPX5 // Components - IPX6
Performance
Max Payload 300 lbs
Pedal Assist 4 levels
Range Up to 75 Miles
Rider Height S/M - 5'3"-5'10". || Large - 5'10"-6'4"
Throttle Included
Top Speed 28 mph
Torque 80Nm
Power & Electronics
App / Connectivity Aventon app, Bluetooth, 4G GPS
Battery Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Type Li-ion (LG 21700 cells)
Battery Weight 8.7lbs
Charger 42V 4A charger
Charge Time 5 hours
Controller 36V, 33A

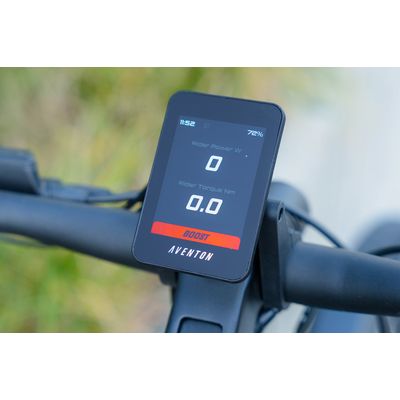

Display Aventon A280
Lights Front and rear lights integrated
Motor 750W nominal / 1440W peak
Peak Power 1440W
Removable Battery Yes
Sensors Sensor Switch Compatible (Cadence & Torque)
Build & Components
Bike Weight 68.5lbs
Brakes Tektro HD-E3520 2-Piston Hydraulic Disc w/ E-Cutoff
Cassette Shimano CS-HG200-8 8 speed Cassette, 12-32T
Chain 7/8 speed 120L
Crankset 165mm
Drivetrain Shimano Altus RD-M310
Fenders Included
Fork 80 mm Travel, Adjustable Coil Spring with Preload Adjustment and Lockout, Nutted Axle
Fork Spacing 100mm
Frame Material 6061 Aluminum
Frame Style step-over
Front Rotor 180mm 6 bolt
Grips Aventon Lock on grips
Handlebar Aluminum 31.8mm, 680mm
Pedals 9/16" Composite Platform
Rear Rack Included
Rear Rotor 180mm 6 bolt
Saddle Aventon Saddle
Seatpost 30.9mm Aventon Suspension Seatpost with 50mm travel
Seatpost Clamp 34.9mm
Suspension 80mm coil spring fork, suspension seatpost
Tires 27.5 x 2.2
Wheels 27.5" Double Wall Aluminum, 36 Hole, 15x100mm Thru Axle
Other
Rear Spacing 148mm
