Aventon

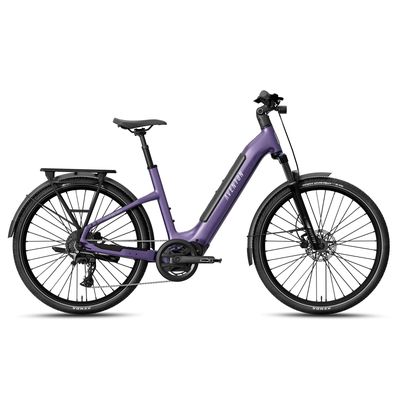

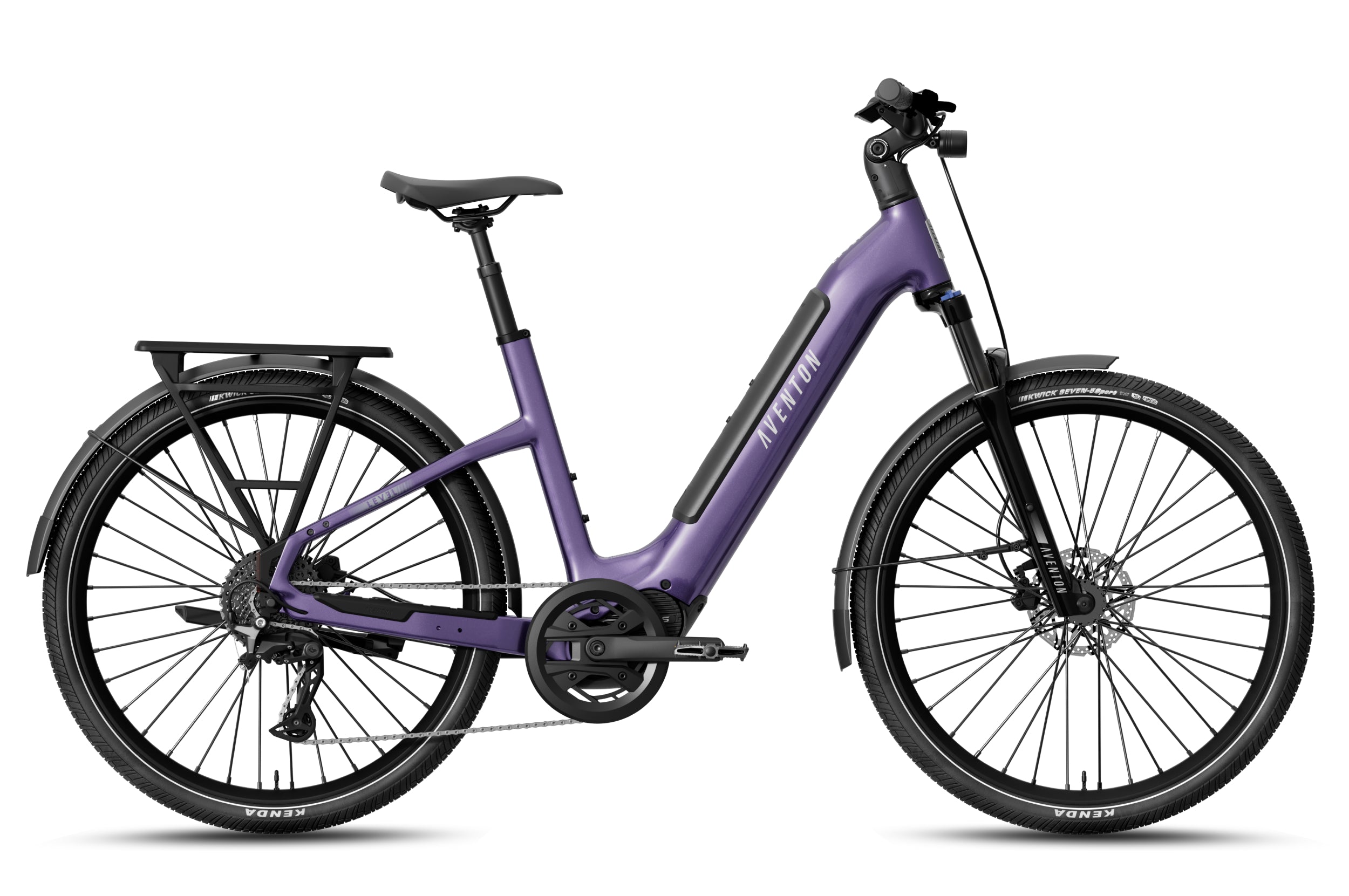

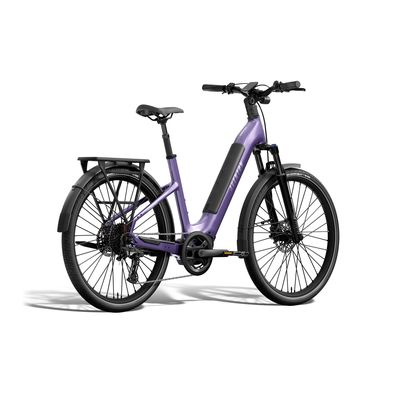

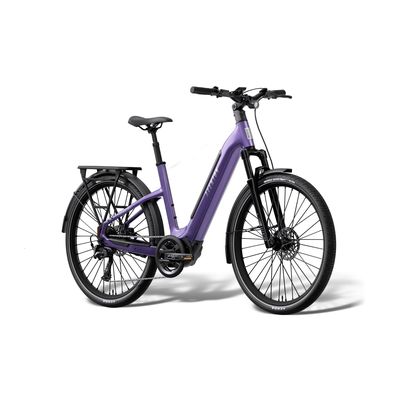

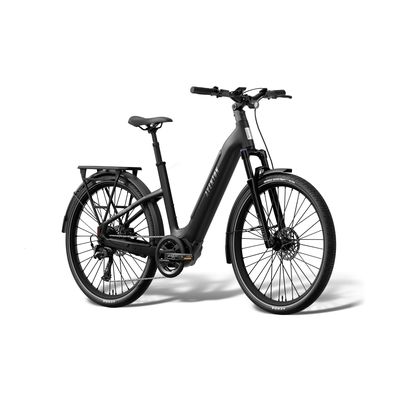

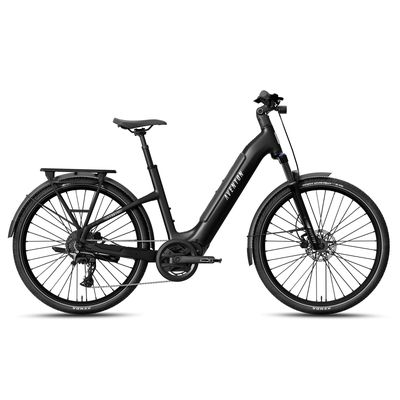

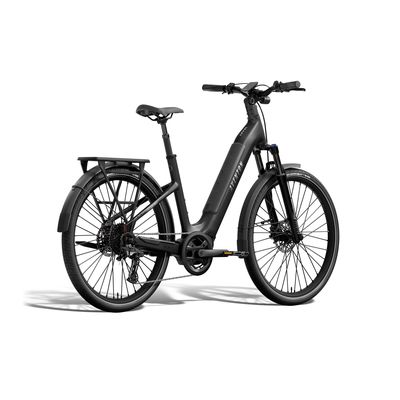

Level 4 ADV Step-Through

Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Top Speed
28 mph
Range
110 mi
Payload
300 lbs
Motor
250W
Battery
Certified to UL 2271
$2699.00

The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter …


Color — Select color

Please select a color

Size — Select size

Please select a size
Buy Now
Please make your selections above
Authorized Dealer Free Delivery (10mi) Free Rental w/ Purchase

Specifications

Technical details.

General
Certification Certified to UL 2271
E-Bike Class Class 1 (Convertible to Class 2 and/or Class 3)
Ideal Use Commuting
Warranty 2-year warranty
Water Resistance Bike - IPX6 // Motor - IP67
Performance
Max Payload 300 lbs
Pedal Assist 4 levels
Range Up to 110 Miles
Rider Height S/M - 4'11"-5'7". || Large - 5'7"-6'1"
Throttle Compatible, Not Included
Top Speed 28 mph

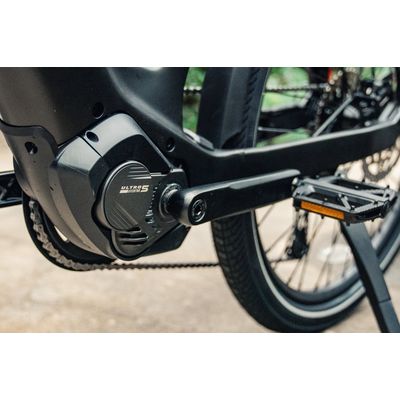

Torque Aventon Ultro S Mid-drive Motor, 100Nm Motor Torque, 750W Peak Power
Power & Electronics
App / Connectivity Aventon app, Bluetooth, 4G GPS
Battery Certified to UL 2271
Battery Type Li-ion (Samsung 21700 58E cells)
Battery Weight 8.7lbs
Charger 42V 4A charger
Charge Time 5 hours
Display A280 Center Display
Lights Front and rear lights integrated
Motor 250W nominal / 750W peak
Peak Power 750W
Removable Battery Yes
Build & Components
Bike Weight 61lbs
Brakes Tektro HD-M3120 2-Piston Hydraulic Disc Brakes

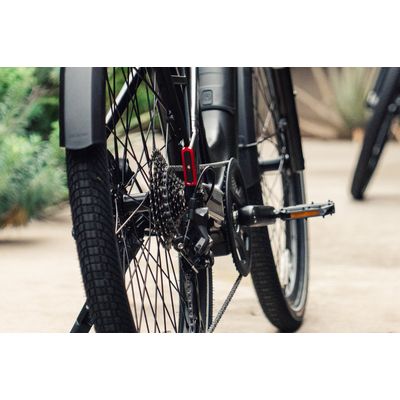

Cassette Shimano Cues 10-Speed 11-39T
Chain 48T
Crankset 165mm ISIS Splined
Drivetrain Shimano Cues 10-Speed
Fenders Included
Fork 100 mm Travel, Adjustable Coil Spring with Preload Adjustment and Lockout, 15x100 mm Thru Axle, 43 mm Offset, Tapered Steerer Tube
Fork Spacing 100mm
Frame Material 6061 Aluminum
Frame Style step-through
Front Rotor 180mm 6 bolt
Grips Aventon Lock on grips
Handlebar 31.8mm, 680mm Width, 30mm Rise
Pedals 9/16" Composite Platform

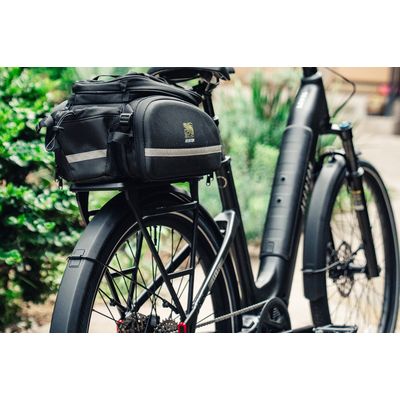

Rear Rack Included
Rear Rotor 180mm 6 bolt
Saddle Aventon Saddle
Seatpost Aventon Suspension Post, 30.9mm, 50mm Travel, 400mm Length
Seatpost Clamp 34.9mm
Suspension 100mm fork, 50mm suspension seatpost
Wheels 27.5" Double Wall Aluminum, 36H
Other
Rear Spacing 135mm
