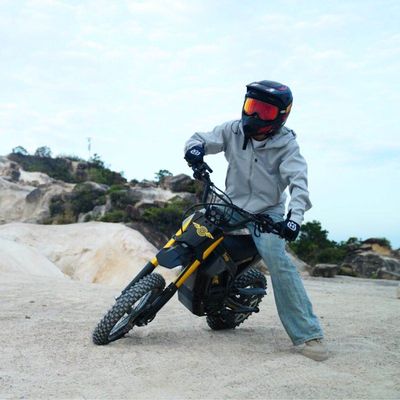

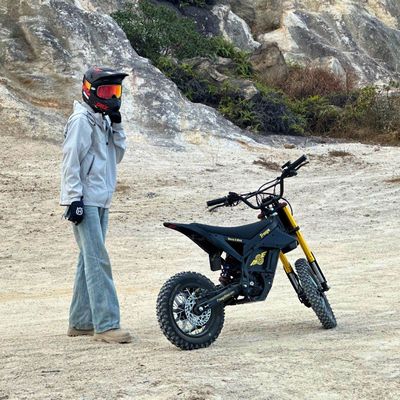

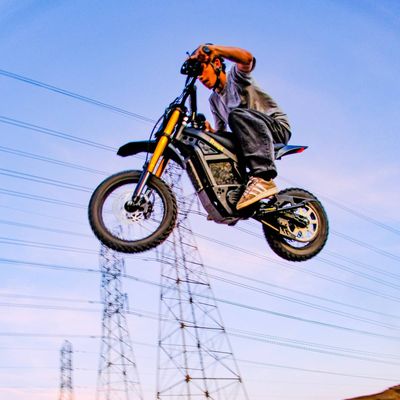

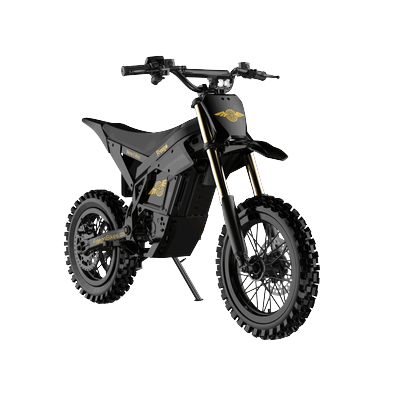

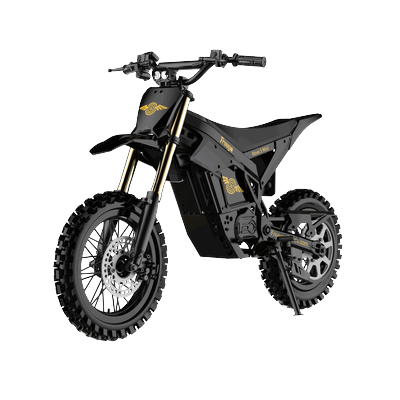

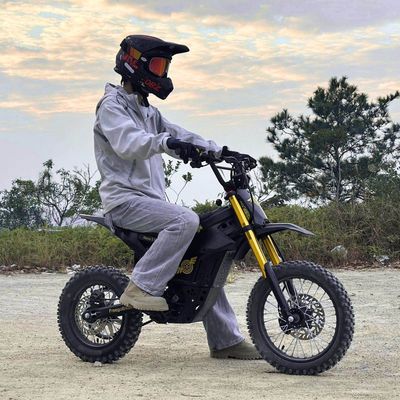

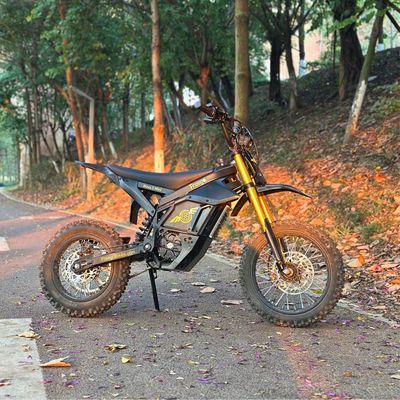

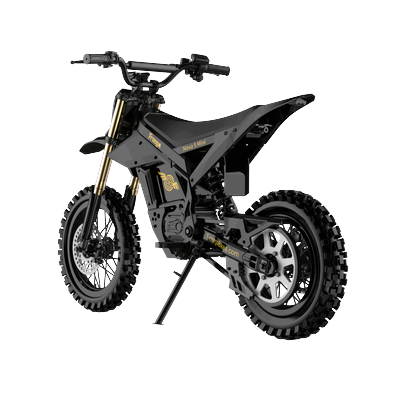

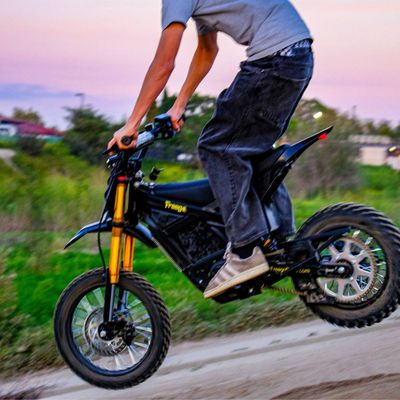

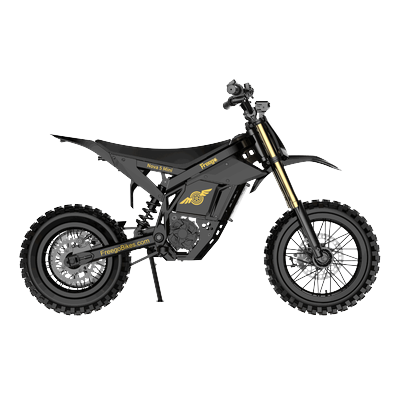

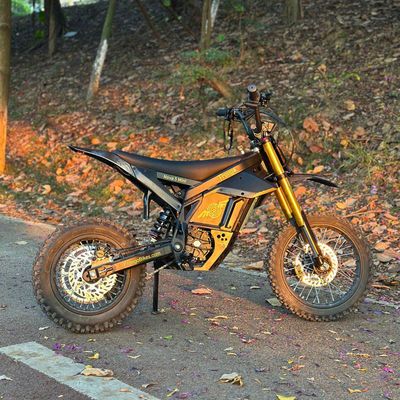

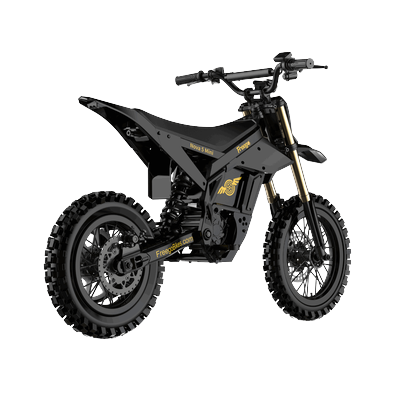

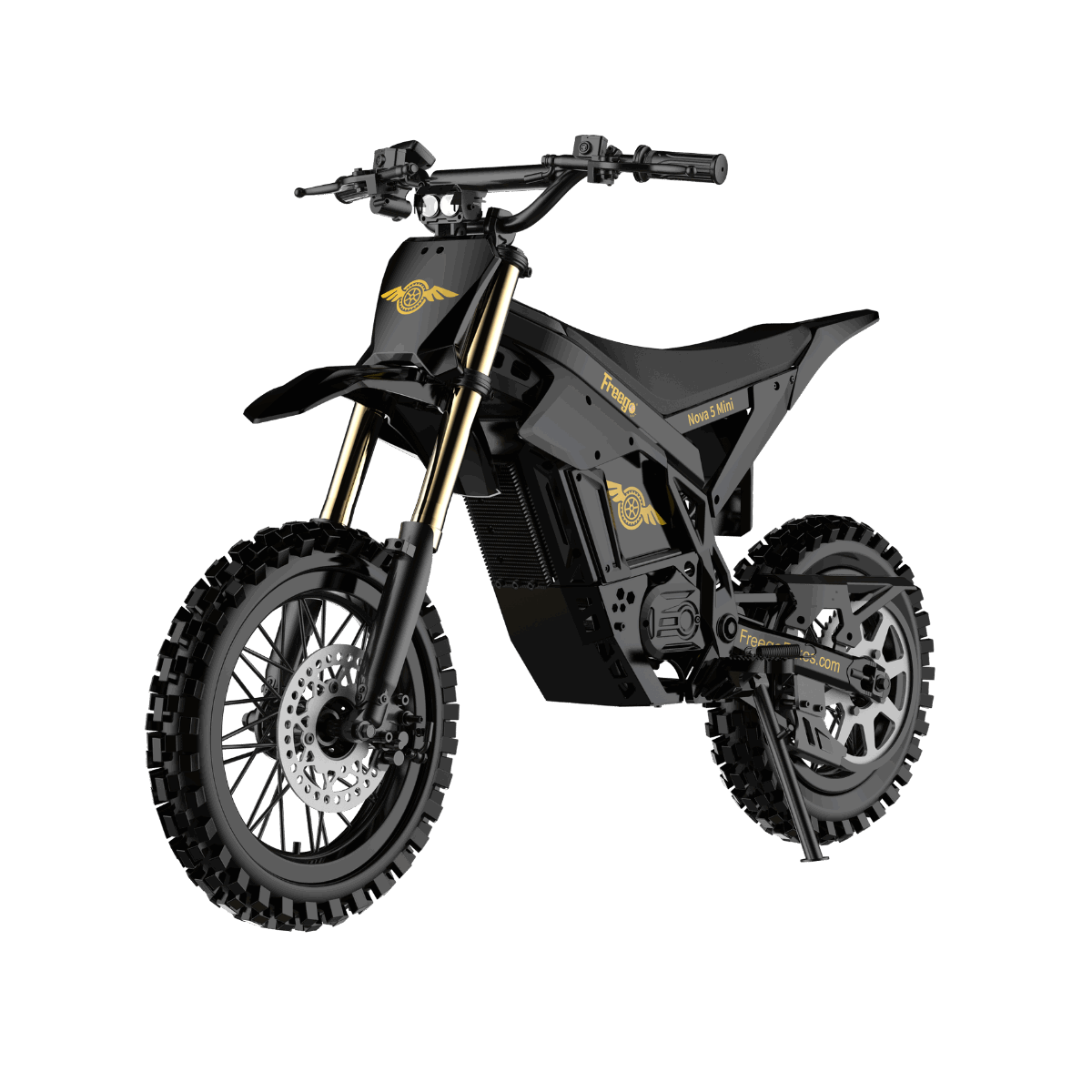

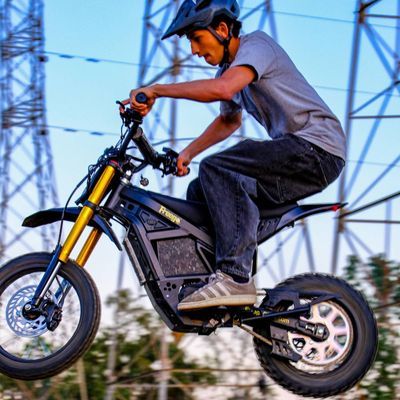

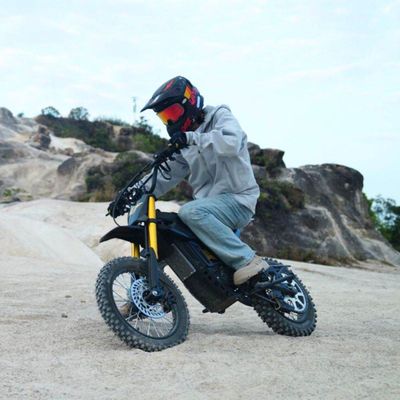

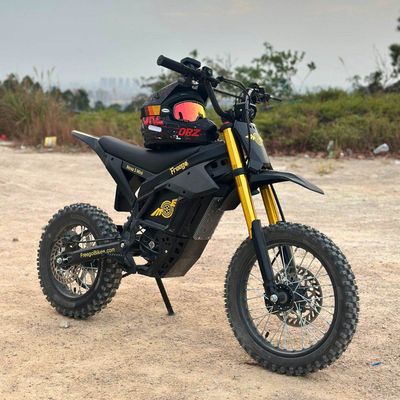

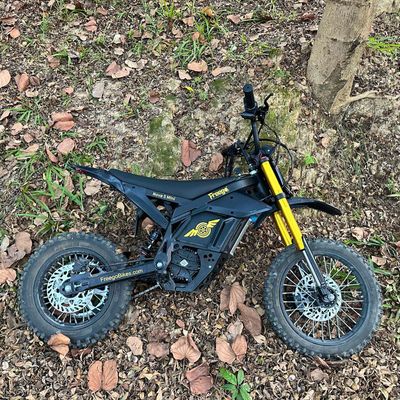

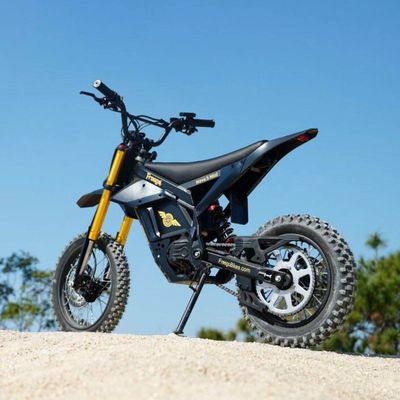

Freego Nova 5 Mini Ebike for Teens and Adults

Electrical

• Max Speed: Up to 37 mph (60 km/h), varying based on load and road conditions.

• Speed Levels: 3 speed levels available; Speed 1 is 10 mph, and Speed 3 is 37 mph.

• Motor Power Output: 1500 Watts (nominal) and 2500 Watts (peak).

• Motor Type: Mid drive Brushless Motor (DC).

• Battery: 48V, 21Ah (1008Wh).

• Charging Time: 5–8 hours using a 54.6V, 3A charger.

• Riding Range:

  • Eco mode: 35 miles (tested at 10 mph).

  • Sports mode: 20 miles (tested at 30 mph).

  • Note: Tested with a 165 lb rider, no bags, at 77°F on a flat road with no wind.

• Controller: 60A/240A Brushless Motor Controller.

• Motor Activation: Triggered by an electric throttle only.

• Throttle Type: Full-twist.

• Lighting: LED headlight and rear brake light.


Physical

• Frame Material: High-strength Steel Pipe.

• Max Loading: 264 lbs (120kg).

• Bike Net Weight: 117 lbs (53kg) including battery.

• Battery Weight: 20 lbs.

• Package Size: 59 * 11.8 * 32 inch (150 * 30 * 83 cm).

• Transmission Gears: Two-stage speed reduction with a 1:9.6 reduction ratio.

  • First Stage: Pulley with 23:51 ratio.

  • Second Stage: Chain sprocket with 13:56 ratio.

• Brake System: Front and rear hydraulic disc brakes with 2-piston calipers.

• Suspension: Hydraulic front and rear shock absorbers.

• Seat Height: 29.5 inch (75 cm).

• Suggested Rider Height: 4'7"–5'11" (140–180 cm).

• Best For: All Terrain.

Wheels

• Wheel Type & Size: Spoke wheels with a 14" front alloy rim and a 12" rear alloy rim.

• Tire Types & Size: Front 14" and rear 12".

• Tire Material: Tubed, pneumatic motorcycle-grade tires that are puncture-resistant.

• Tubes: Inflatable thick inner tubes.

Why You’ll Love It

• Mini Profile, Major Performance: Its compact mini-bike design makes it incredibly easy to handle for both teens and adults, offering a nimble ride without sacrificing the power of a 2500W peak motor.

• All-Terrain Mastery: Specifically engineered as a mini "All Terrain" vehicle, it effortlessly transitions from smooth city streets to rugged off-road trails.

• Balanced Mid-Drive Power: The mid-drive motor placement ensures a low center of gravity and superior weight distribution, providing a more stable and efficient ride compared to standard hub motors.

• Ultimate Stopping Power: Equipped with professional-grade 2-piston hydraulic disc brakes and puncture-resistant motorcycle tires for maximum safety on every adventure.

• Smooth Hydraulic Comfort: Experience premium ride quality with a full hydraulic suspension system that absorbs bumps, making even the toughest terrain feel smooth.

• Compact Convenience: With its 29.5-inch seat height and lightweight steel frame, it is the perfect "grab-and-go" electric bike for commuting or weekend fun.
