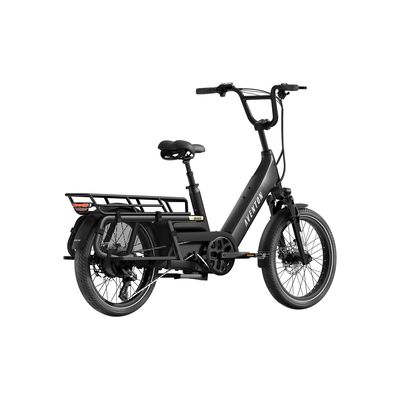

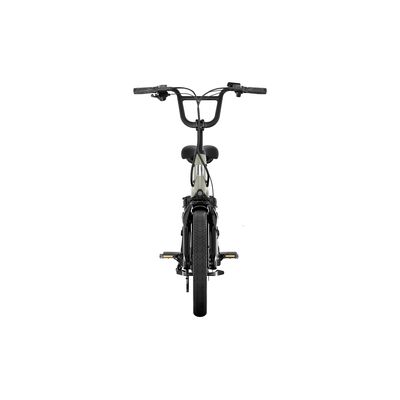

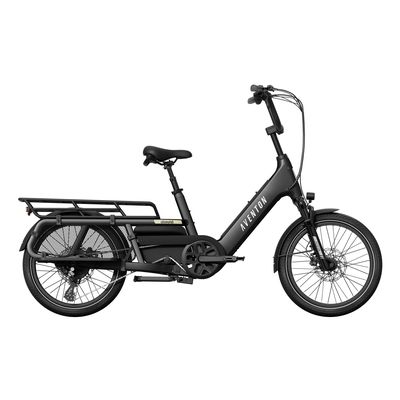

Aventon

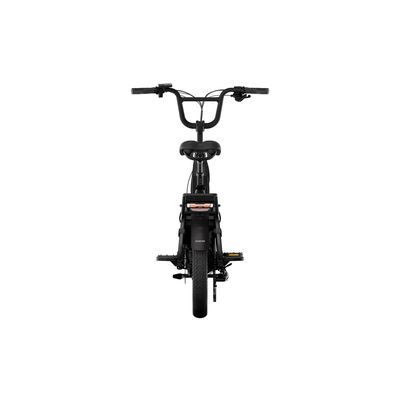

Abound LR
In Stock
Top Speed
20 mph
Range
60 mi
Payload
440 lbs
Motor

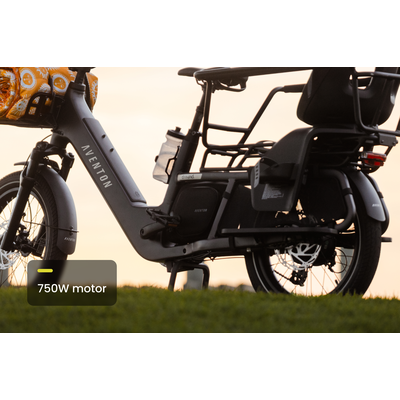

750W
Battery
Certified to UL 2271
$1999.00

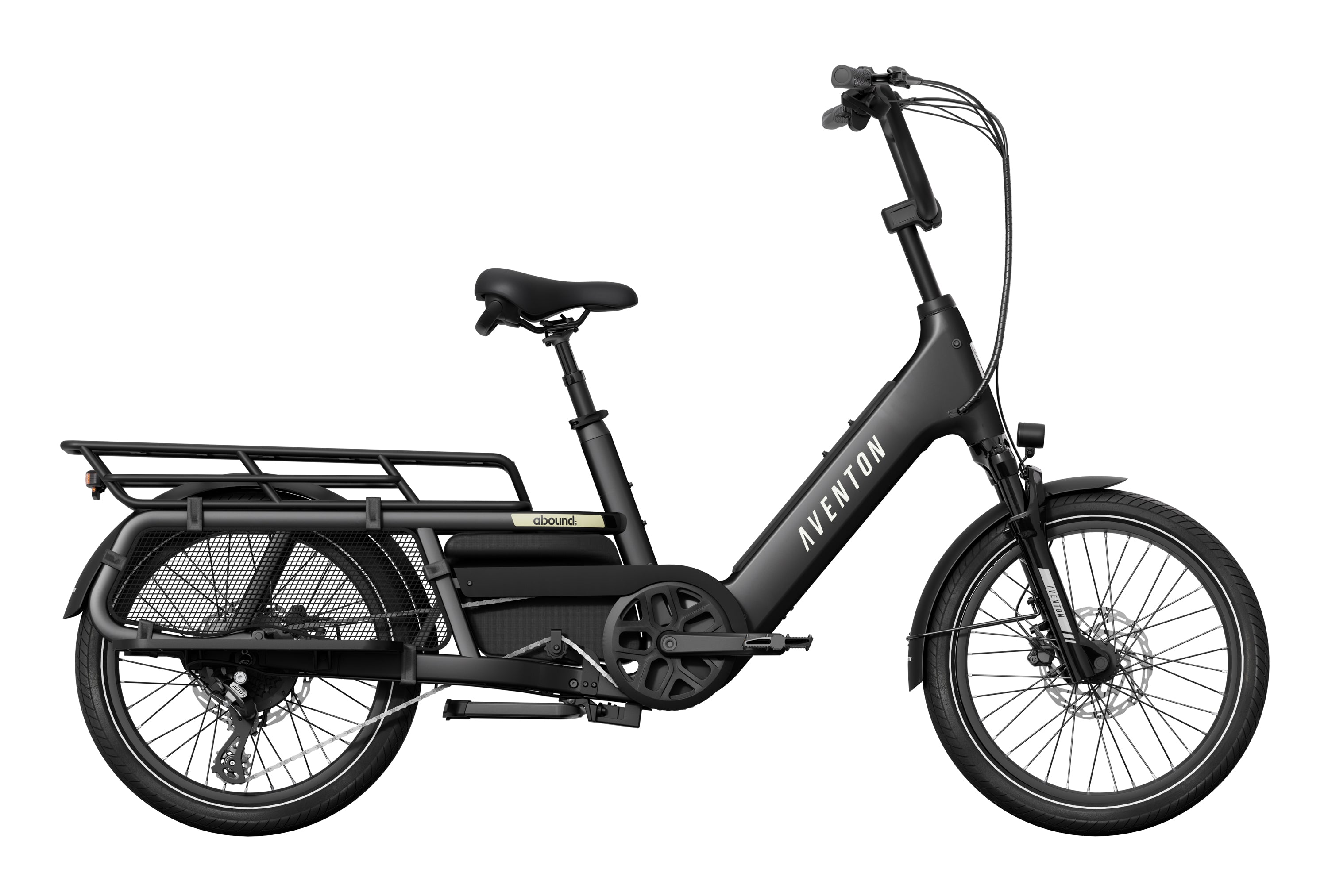

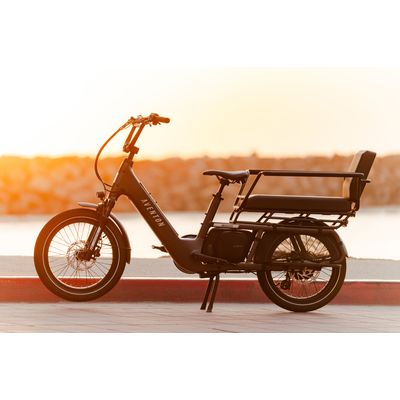

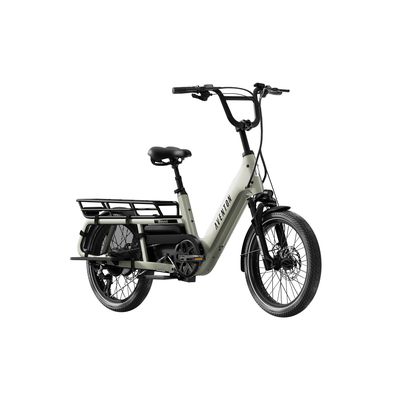

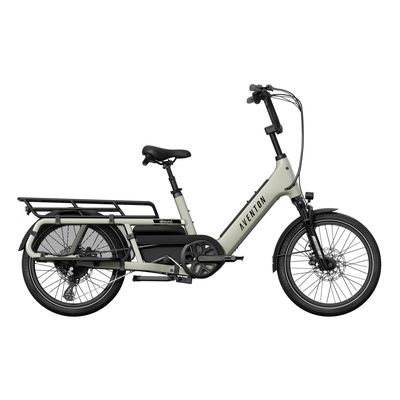

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach …

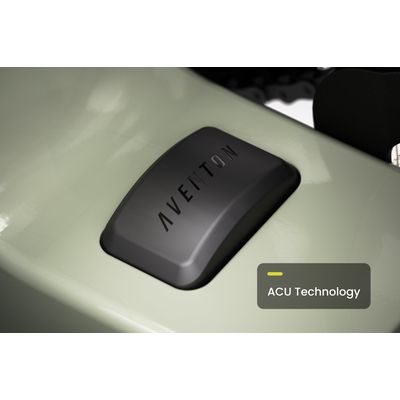

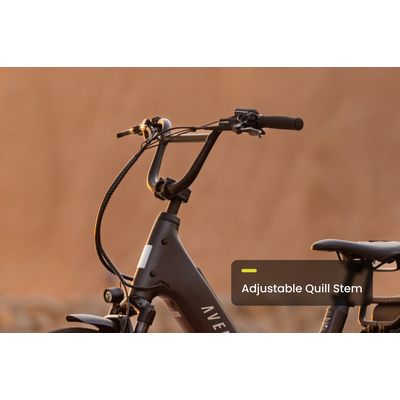

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.
Color — Select color
Please select a color
Size — Select size
Please select a size
Your Selection
Please make your selections above
Authorized Dealer
Free Delivery (10mi)
Free Rental w/ Purchase
Specifications
Technical details.
General
Certification
Certified to UL 2271
E-Bike Class
Class 2 Ebike
Ideal Use
Cargo & Utility
Warranty
2-year warranty
Performance

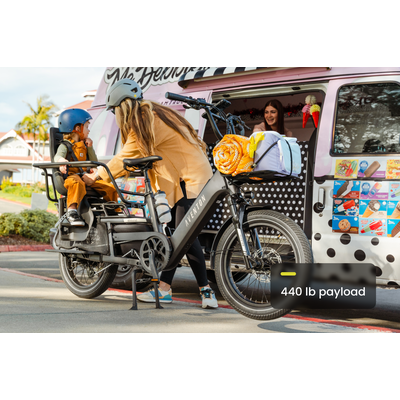

Max Payload
440 lbs
Pedal Assist
4 levels
Range
Up to 60 miles
Rider Height
4'11" - 6'3"

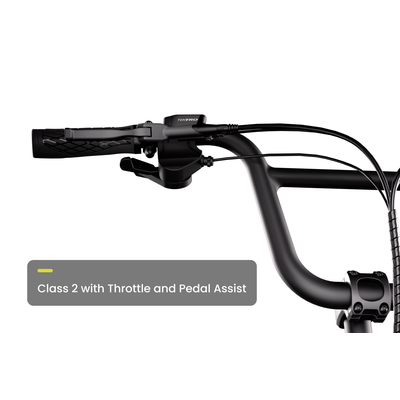

Throttle
Aventon LH Handlebar Mounted
Top Speed
20 mph
Torque
80Nm
Power & Electronics
App / Connectivity
Aventon app, Bluetooth, 4G GPS
Battery
Certified to UL 2271
Battery Type
Li-ion (LG 21700 cells)
Battery Weight
8.7lbs
Charger
36V Output: 42V/ 4A
Charge Time
5 hours
Controller
36V, 33A
Display
Aventon BC147

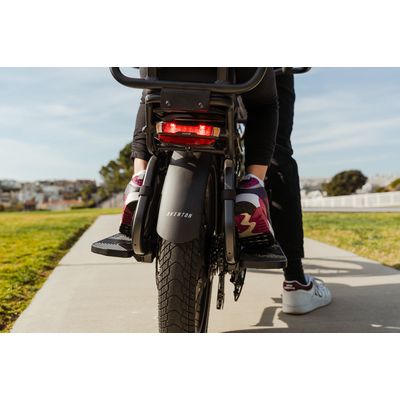

Lights
Front and Rear Lights Integrated w/ Turn Signals
Motor
750W nominal / 1188W peak
Peak Power
1188W
Removable Battery
Yes

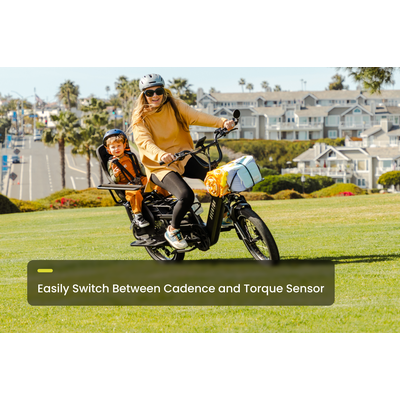

Sensors
Double Sided Bottom Bracket Torque Sensor
Build & Components
Bike Weight
88lbs
Brakes
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Chain
7/8 speed 154L
Crankset
3pc, 165mm crank arm
Drivetrain
Shimano Altus RD-M310 8 Speed
Fenders
Included
Fork
Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions
Fork Spacing
110mm
Frame Material
Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
Frame Style
step-through / longtail
Front Rotor
180mm 6 bolt
Grips
Aventon Ergonomic Comfort lock on grips
Handlebar
BMX Style Aluminum 31.8mm, 720mm
Pedals
9/16" Composite Platform
Rear Rack
Included
Rear Rotor
203mm 6-bolt
Saddle
Aventon Saddle w/ grab handle by Selle Royal

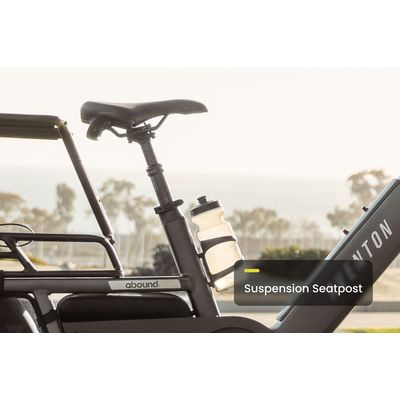

Seatpost
Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Seatpost Clamp
34.9mm
Suspension
51mm suspension fork, suspension seatpost
Wheels
Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve
Other
Headset
H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs
Rear Spacing
175mm
